Selection guide — the locking mechanism is the first choice when picking a quick coupling, because it decides connection feel, durability and which standards you can use.

Three Locking Mechanisms, One Job

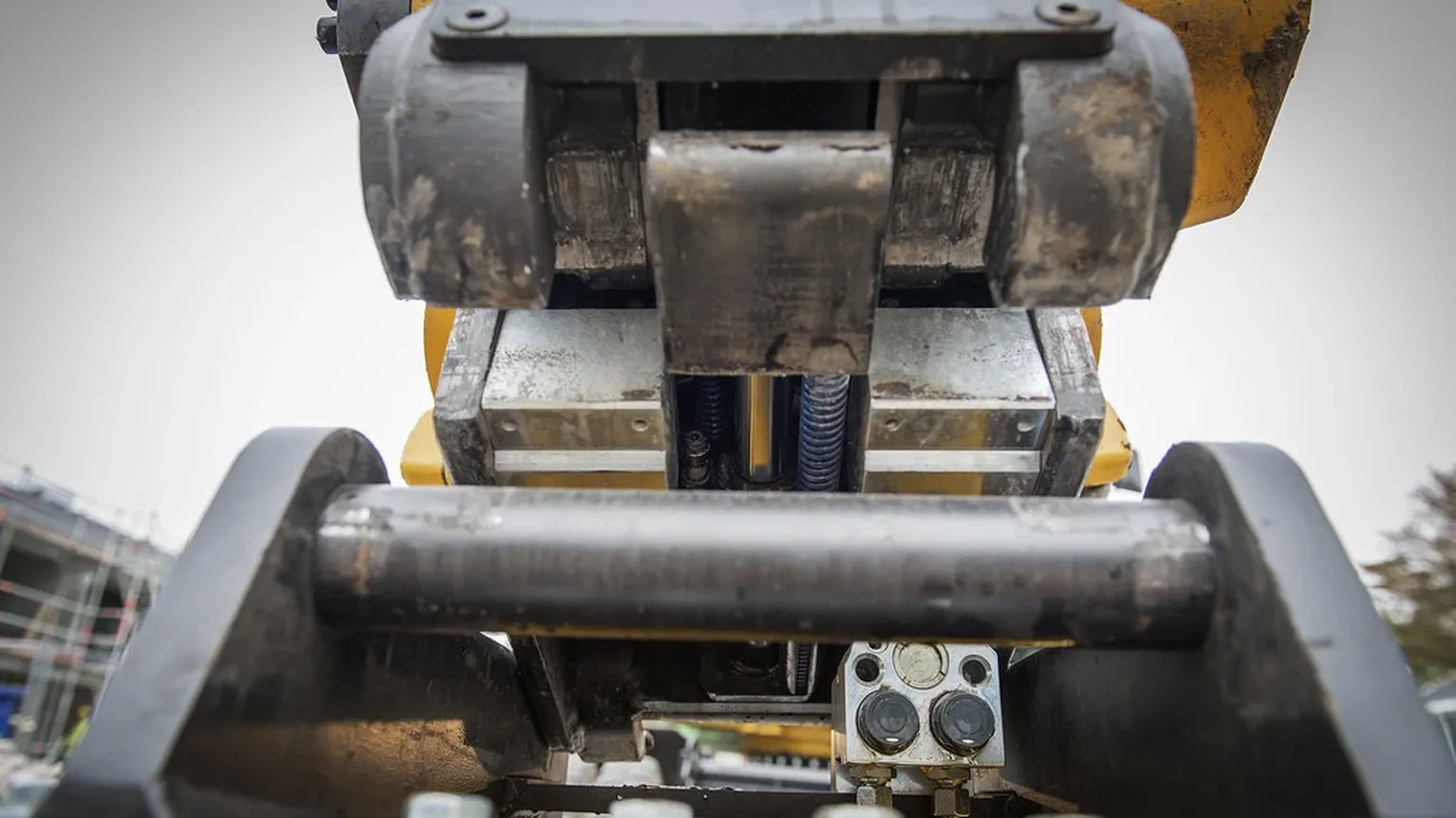

Every hydraulic quick coupling does the same trick: connect and disconnect a fluid line with one hand, no tools, no spills (in the right design). The difference between the designs is how they lock. Three mechanisms dominate the market:

• Ball lock — steel balls in the female body seat into a groove on the male nipple, held by a sliding sleeve.
• Pin type — locking pins (instead of balls) engage the groove, also released by a sleeve.
• Sleeve type — a straight or tapered sleeve traps the nipple by friction/taper rather than discrete locking elements.

They look similar from a distance and are not interchangeable. The standard ISO 7241 and ISO 5675 families are ball-lock; pin-type is a distinct design found mostly in heavy-duty and mining lines; sleeve-type is the older, simpler form.

Ball Lock — The Industry Standard

How it works: the female body carries a ring of hardened steel balls around the bore. When the nipple is pushed in, the balls ride over its locking groove; when the sleeve is released, it pushes the balls into the groove and locks the pair. Pulling the sleeve back lifts the balls out of the groove and the halves separate.

Why it dominates: the ball/groove arrangement gives a crisp, audible click, a positive lock, and a connection that can be cycled tens of thousands of times. The load path is distributed over the ball ring, which handles shock loads well. It’s the design used by ISO 7241 Series A and B and ISO 5675, which makes it the interchange standard worldwide.

Ball lock strengths	Ball lock limits
Industry-standard interchange (ISO 7241 / 5675)	Balls and groove wear over many cycles (see the stuck-coupling guide)
Fast one-hand connect, audible click	Slightly more pressure drop than a straight bore
Proven, cheap, everywhere	Contamination can jam the balls in the sleeve
Wide size and material range	—

Pin Type — The Heavy-Duty Option

How it works: instead of balls, the female body uses two or more hardened locking pins that slide radially into the nipple groove. The sleeve holds them in; pulling the sleeve back retracts them. Because pins are longer and have a larger contact face than balls, they spread the locking load over a bigger area.

Where it shines: the larger contact area means pin-type couplings handle higher shock and vibration loads without brinelling (indenting) the nipple groove. That’s why pin-type designs are the default in mining, tunnelling, and heavy construction circuits where lines see brutal cyclic shock. The trade-off is a bulkier body, a slightly heavier sleeve action, and less standardization — pin-type couplings are more manufacturer-specific than the ISO ball-lock families.

Sleeve Type — The Simple Classic

How it works: the oldest design. The female half is a sleeve with a tapered or straight bore; the nipple pushes in and the sleeve spring holds it seated. Some designs add a groove-and-detent, but the fundamental lock is the spring-loaded sleeve trapping the nipple, not discrete locking elements.

Where it’s still used: low-pressure, low-cycle applications — pneumatic lines, coolant circuits, washdown and lubrication points — where the simplicity and low cost outweigh the weaker lock. Sleeve-type couplings are generally not rated for the high pressures of mobile hydraulics and are the least standardized of the three.

Side-by-Side Comparison

Attribute	Ball lock	Pin type	Sleeve type
Locking element	Steel balls	Sliding pins	Sleeve/taper only
Connection feel	Crisp click	Firm, heavier	Soft, springy
Typical standard	ISO 7241, ISO 5675	Manufacturer-specific	Manufacturer-specific
Pressure rating	High (e.g. 250 bar / 1/2” steel)	Very high	Low–medium
Shock/vibration tolerance	Good	Best	Fair
Cycle life	Excellent	Excellent	Good
Flow restriction	Low	Low–medium	Medium
Interchange availability	Widest	Limited	Limited
Cost	Low–medium	High	Lowest
Typical use	Mobile/industrial hydraulics	Mining, tunnelling, heavy shock	Pneumatics, coolant, low-pressure

How to Choose

1. Need ISO interchange? Ball lock — it’s the only one of the three with ISO standards behind it (7241/5675). If you need parts from any supplier, this is the design.
2. Shock loads and vibration? Pin type — the larger contact area wins where a loader bucket slams its couplers thousands of times.
3. Low pressure, low cost, simple? Sleeve type — fine for pneumatics and washdown lines where the rating is never pushed.
4. High pressure mobile hydraulics? Ball lock (ISO 7241) for general service, or flat-face (ISO 16028, covered in its own guide) where contamination control matters more than the locking style.

The five-input sizing sequence in the sizing guide applies to all three designs — the locking mechanism doesn’t change how you size the bore.

FAQ

Q: Are ball lock and pin type couplings interchangeable? A: No. The female ball-lock body will not accept a pin-type nipple — the groove geometry and locking elements differ. They are separate product families.

Q: Why does my ball-lock coupling need two hands sometimes? A: Ball-lock couplings release by pulling the sleeve; if the circuit has residual pressure the poppet holds the pair tight and the sleeve won’t travel. Depressurize first — see the pressure safety guide.

Q: Do pin-type couplings leak more than ball lock? A: No — the locking mechanism doesn’t seal. Sealing is done by the poppet valves and O-rings, which are comparable across designs. Pin type’s advantage is mechanical, not hydraulic.

Q: Which design lasts longest? A: At high cycle counts in clean service, both ball lock and pin type last tens of thousands of cycles. Pin type holds up better specifically under shock and vibration because the larger pins don’t indent the groove. In dirty service, contamination protection (dust caps) matters more than the mechanism.

Q: Is ISO 7241 Series A or B “better”? A: Neither — they’re parallel interchange families for different regions. Series A dominates Europe/Asia, Series B North America. Choose by where the machine works; the detailed difference is in the Series A vs B guide.
