Hydraulic quick couplings let operators connect and disconnect hydraulic hoses, machines, and attachments without breaking a threaded joint every time. Push the sleeve, seat the plug, release — the internal valves open and flow starts. Pull the sleeve again, and the valves close to limit fluid loss and air entry.

The hard part is not connecting them. The hard part is replacing one when you cannot read the part number, or selecting one when the machine manual only says “ISO 16028, 1/2”.“

Two couplings can share the same body finish, nominal size, and rear thread while using completely different plug profiles, locking grooves, valve travel, and pressure classes. This guide covers the four interface families you will actually meet in the field — ISO 7241-1 Series A, ISO 7241-1 Series B, ISO 16028 flat-face, and ISO 5675 agricultural — with interchange references, a measurement procedure, a replacement qualification checklist, and the failure modes that make cross-referenced parts fail in service.

⚠️ Read this first. The cross-reference tables below are identification leads, not certification. They tell you which brand families typically follow which standard; they do not guarantee that any two part numbers are interchangeable in every size, thread, or pressure class. Before buying or installing, confirm the exact male and female part numbers against current manufacturer drawings and operating data.

What Makes Hydraulic Quick Couplings Interchangeable?

True interchangeability exists only when the replacement satisfies both the mechanical interface and the application duty. A coupling that mates perfectly but cannot handle the circuit pressure is not interchangeable — it is a leak waiting to happen.

Verification layer	What must match	Why it matters
Interface family	ISO standard or verified manufacturer profile	Determines whether the two halves can mate at all
Mating geometry	Plug nose, sealing diameter, locking groove, socket geometry	Controls engagement, retention, and sealing
Nominal size	Size within the same interface family	A 1/2” Series A plug is not a 1/2” Series B or ISO 16028 plug
End connection	Thread standard, size, sealing method	Controls connection to the hose, tube, or equipment port
Valve arrangement	Poppet, ball-seat, flat-face, or pressure-relieving option	Affects opening force, spill, air inclusion, pressure drop
Operating limits	Working/peak pressure, flow, temperature, impulse duty	Determines whether the part is safe in service
Materials and seals	Body material, plating, seal compound	Controls fluid and environmental compatibility

A brand cross-reference narrows the search; it never replaces these checks. Even within one named series, the male and female halves come in several sizes, threads, valve options, materials, and pressure ratings.

ISO 7241-1 Series A — The General-Purpose Workhorse

ISO 7241-1 Series A is the most common hydraulic quick-coupling interface on industrial equipment, machine tools, mobile hydraulics, and agricultural machinery. Typical construction: sleeve-operated ball-lock socket with self-sealing poppet valves.

Series A interchange reference leads (verify size and rear connection before use):

Manufacturer	Series	Typical applications
Parker	6600 Series (incl. 6601/6602)	Industrial & mobile, 1/8”–2”
Faster	Series A (ANV/ASV)	General purpose
Stucchi	IRB Series	Industrial, A-profile
Eaton (Aeroquip)	FD89-series equivalents	Mobile & industrial
Generic Chinese factory “A-type”	ISO-A	Widely produced; verify profile

Typical specs (Series A, 1/2”): working pressure ~3,000 psi (207 bar), flow-dependent pressure drop per valve arrangement, ball-lock sleeve retention, poppet valves. Always confirm against the maker’s data sheet.

ISO 7241-1 Series B — Same Standard Family, Different Profile

ISO 7241-1 Series B is also a general-purpose hydraulic interface, but its mating profile differs from Series A. Series A and Series B do not connect — they are not substitutes. This is the single most common interchange mistake in the field.

Manufacturer	Series	Note
Stucchi	IRB Series (B-profile versions)	Verify profile, do not mix with A
DNP	HNV Series	Example: HNV-04-04-N-NPT (male) / HNV-04-04-C-NPT (female)
Faster	Series B (BNV/BSV)	B-profile
Generic Chinese factory “B-type”	ISO-B	Widely produced; verify profile

If the old coupling still has readable markings, use them. If the marking is incomplete or worn, photograph both halves and measure the plug profile before choosing a replacement series.

ISO 16028 Flat-Face — The Low-Spill Standard for Mobile Equipment

ISO 16028 flat-face couplings use flush valve faces that wipe clean instead of projecting poppets. The geometry reduces fluid loss and air inclusion during connection and disconnection — the reason they dominate skid-steer loaders, excavator attachments, and other mobile circuits where cross-contamination and spill matter.

Manufacturer	Series	Typical use
Eaton (Aeroquip)	FD89	Skid steer, excavator attachments; e.g. FD89-1002-08-08 (male) / FD89-1001-08-08 (female)
Faster	FF / NV series flat-face	Mobile & agriculture
Stucchi	Flat-face ranges (e.g. DNP FF-compatible)	Construction, forestry
DNP	PLT4 (FF-HPG)	Example: FF-HPG-08-08N-NPT / FF-HPG-08-08C-NPT

A flat face alone does not prove size or pressure class. Equipment brand is not enough either: confirm machine model, attachment circuit, nominal size, pressure class, and both mating halves.

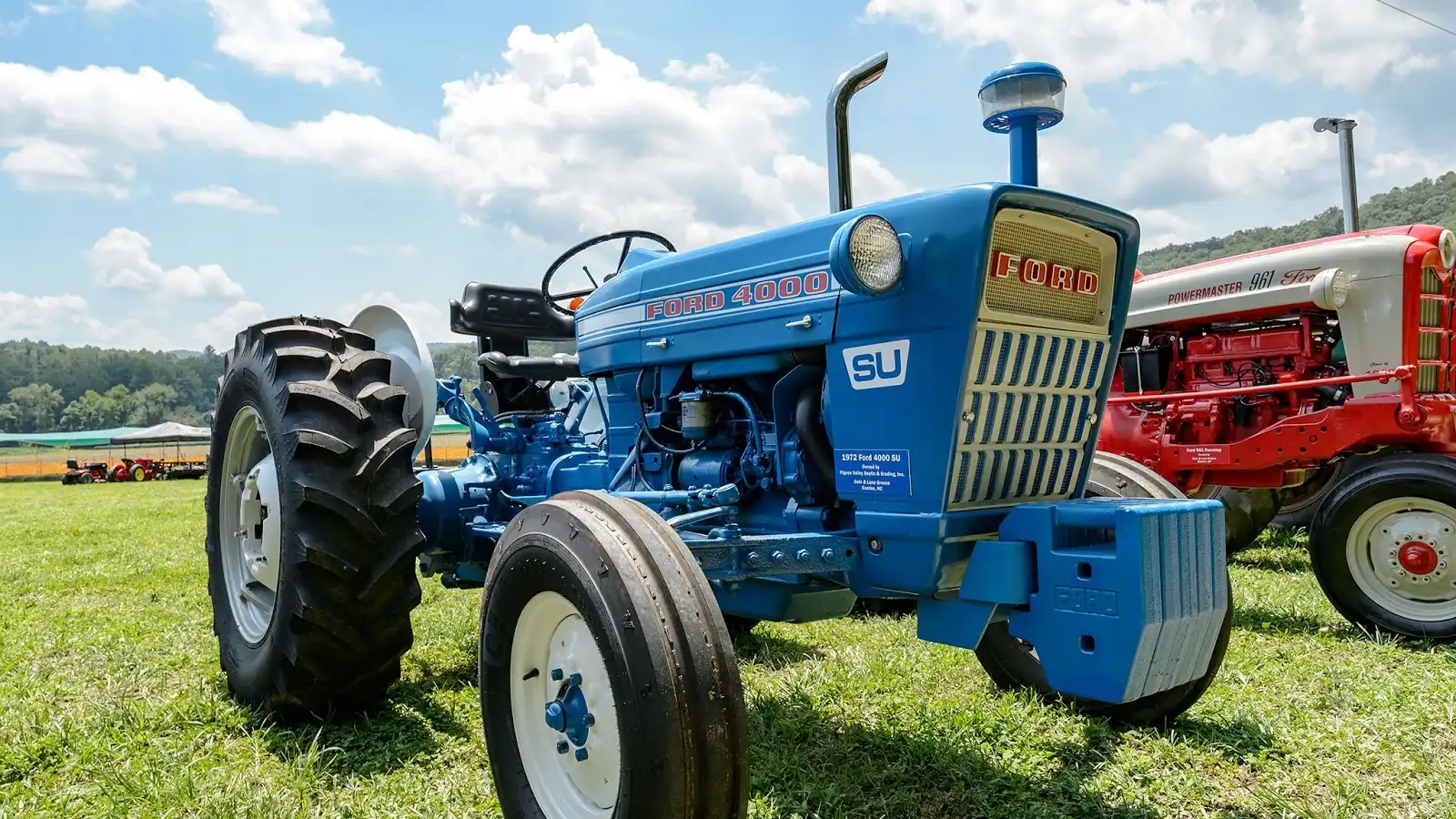

ISO 5675 — Agricultural Couplings for Tractor Implements

ISO 5675 covers couplings commonly used between tractors and agricultural implements. Variations include ball-seat, poppet, and push-pull arrangements, plus breakaway brackets that require specific mounting.

Manufacturer	Series	Note
Faster	NV/NS Series	Example: NS 12 NPT M (male) / NS 12 NPT F (female)
Tomco	PC Series	Confirm by nominal size and thread
Parker	Agricultural ranges	Tractor-side mounting variants

Agricultural couplings are often installed in push-pull breakaway brackets. A replacement must be checked for mating geometry and sleeve movement, mounting style, and the equipment maker’s disconnect function — not just the thread.

Coupler Size Chart: Nominal Size vs. Actual Profile

Nominal sizes describe the size within a family — they are not the outside diameter of the plug or socket. A 1/2” ISO 7241 Series A plug, a 1/2” Series B plug, a 1/2” ISO 16028 plug, and a 1/2” ISO 5675 plug are four different profiles.

What to measure / record	What to capture	Common mistake avoided
Plug nose	Nose diameter, nose length, valve face	Confusing similar-looking standards
Locking groove	Diameter, width, position from nose	A plug that enters but cannot lock
Socket	Sleeve diameter, opening diameter, locking mechanism	Matching only the male half
Rear connection	BSPP, BSPT, NPT, metric; size; sealing method	Assuming thread size identifies the interface
Markings	Manufacturer, series, part number, size, rating	Losing the strongest cross-reference evidence

Never scale dimensions from a browser image. Use current dimensional drawings.

Replacement Qualification: The 8-Step Field Process

1. Make the system safe. Isolate and depressurize per the equipment manufacturer’s stored-energy procedure.
2. Record both halves. Photograph plug, socket, valve faces, sleeve, markings, rear connections.
3. Identify the likely family. Use the standard profiles and cross-reference leads above.
4. Verify dimensions. Compare measured features with current dimensional drawings for the exact series and size.
5. Verify the end connection. Confirm thread form, size, gender, and sealing method independently of the coupling interface.
6. Verify operating duty. Record working and peak pressure, flow, pressure drop, fluid, temperature, impulse frequency, connection cycles.
7. Verify special conditions. Residual pressure, vibration, side load, corrosion, contamination, breakaway requirements.
8. Approve the exact pair. Record the proposed male and female part numbers; confirm their current technical data meet the application.

Why Cross-Referenced Couplings Fail in Service

Symptom	Likely cause	Action
Plug enters but will not lock	Wrong groove position/profile, or trapped pressure	Stop forcing; depressurize; compare dimensions
Coupling locks but leaks	Wrong seal geometry, damaged valve seat, incomplete engagement	Isolate circuit; inspect the matched pair
Difficult connection	Residual pressure, valve-force difference, contamination	Follow equipment procedure; consider connect-under-pressure design
Excessive pressure drop	Undersized bore or different valve arrangement	Compare flow requirement with the product pressure-drop curve
Unexpected disconnection	Incorrect locking engagement, damaged sleeve, unsuitable mounting	Remove from service until retention is verified

⚠️ Never inspect a suspected high-pressure hydraulic leak with bare hands. Fluid injection injuries require immediate medical attention.

How to Select a Hydraulic Quick Coupling: 5-Step Process

Selection is the mirror image of replacement: instead of matching an existing part, you specify a new one from scratch. Work through these five steps and you will have enough data to buy, regardless of brand.

Step 1 — Define the duty (S.T.A.M.P.). Capture Size (nominal size and hose/port size), Temperature range, Application (machine type and function), Media (hydraulic fluid, additives, water), and Pressure (working + peak + surge). Most selection failures trace back to missing one of these five.

Step 2 — Choose the interface family. General industrial and mobile circuits with standard tools → ISO 7241-1 Series A. European-style general purpose → Series B (never mixed with A). Mobile equipment with spill/contamination concerns (skid steer, excavator attachments) → ISO 16028 flat-face. Tractor-to-implement → ISO 5675. High-flow or connect-under-pressure duty → flat-face or special CUP designs.

Step 3 — Size for flow, not just for the hose. Nominal size should be checked against required flow and acceptable pressure drop. A coupling that matches the hose diameter but is undersized internally will cost you heat and power for the life of the machine. Use the manufacturer’s pressure-drop curves; if the circuit runs continuous duty at high flow, go one size up and re-check.

Step 4 — Specify the end connections. The coupling’s rear connections must match the hose fittings: NPT (tapered pipe, US), BSPP (parallel pipe, metric-standard world), BSPT (tapered BSP), JIC (37° flare, US mobile), or ORFS (O-ring face seal, high-pressure mobile). Get the thread size right on both ends — the interface standard does not dictate the thread.

Step 5 — Confirm valve arrangement and special features. Poppet (general), ball-seat (agricultural), flat-face (low spill), pressure-relieving/connect-under-pressure (residual pressure circuits), and options like dust caps, breakaway brackets, or lockable sleeves. Then record the approved part numbers for both halves.

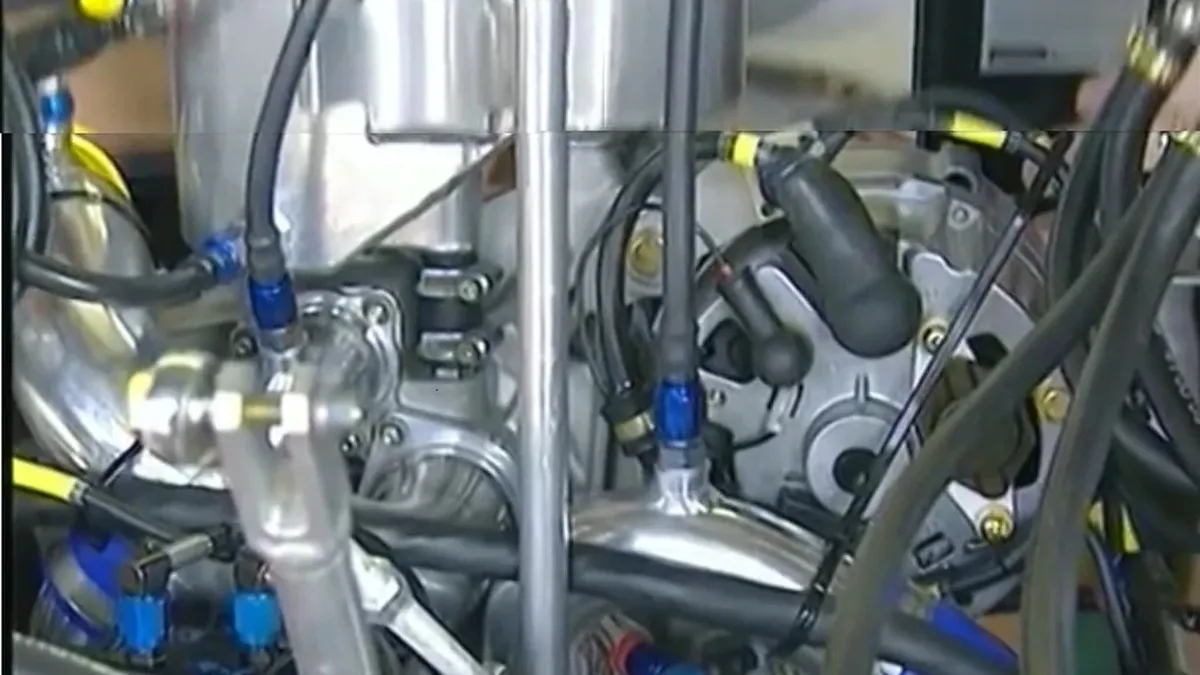

Thread standards at a glance (rear connection, not coupling interface):

Thread	Type	Where it dominates	Seal method
NPT / NPTF	Tapered pipe	US, Canada	Thread sealant / interference
BSPP (G)	Parallel pipe	Europe, Asia	Bonded washer or O-ring
BSPT (R)	Tapered pipe	Commonwealth, Asia	Thread sealant
JIC (37°)	Flare	US mobile	Metal-to-metal 37° flare
ORFS	Straight thread + O-ring	High-pressure mobile	Face O-ring
Metric (M)	Straight thread	European machinery	O-ring or washer

Maintenance: The Three Things That Kill Couplings

Contamination — the #1 killer. Dirt on a poppet or flat-face seal causes internal leakage long before you see external drips. Cap or plug every disconnected half; wipe flat faces before every connection.

Seal wear — O-rings and seal faces are consumables. A coupling that connects easily but weeps under pressure usually needs seals, not replacement. Keep the seal kit number with the part number.

Trapped pressure — connecting under residual pressure forces the sleeve, damages the locking groove, and makes “stuck” couplings. Depressurize the circuit, or specify a connect-under-pressure design if the machine routinely connects hot.

What to Send When Asking for an Interchange Review

• Existing manufacturer, series, and full part number, if readable
• Clear front and side photos of both male and female halves
• Nominal size and measured plug, groove, sleeve, and overall dimensions
• Rear thread or hose connection, including sealing method
• Equipment make, model, and function of the hydraulic circuit
• Working and peak pressure, required flow, acceptable pressure drop
• Fluid, temperature range, seal requirement, environment
• Whether the line retains residual pressure during connection

FAQ

Does the same ISO family guarantee interchangeability? No. Same interface family and nominal size are the starting requirements; final approval still needs exact dimensions, end connection, pressure rating, valve option, material, and seal specification.

Can ISO 7241-1 Series A connect to Series B? No. Series A and Series B use different mating profiles and must not be treated as substitutes.

Can a rear thread identify the coupling standard? No. The thread connects the coupling to the hose or equipment; it does not define the male-to-female quick-coupling interface.

Can an ISO 16028 coupling replace any flat-face coupling? No. A flat appearance alone does not establish conformity, nominal size, pressure class, or dimensional compatibility.

What is the most common interchange mistake? Mixing ISO 7241-1 Series A and Series B because the thread or body diameter looks similar.
