Safety guide — this article is about preventing injury. The single most important rule: never connect or disconnect a hydraulic quick coupling while the circuit is pressurized. Everything below is how to make that rule practical on real machines.

Why Residual Pressure Is the Danger

A hydraulic quick coupling is designed to be operated unpressurized. The poppet valves in both halves seal the oil in the circuit — but when a line is disconnected with trapped pressure, that sealed oil is still at system pressure. A 1/2” line at 200 bar holds a surprising force on the poppet face, and the energy doesn’t disappear when the coupling is separated: it shows up as a sudden release.

The results are not minor. A coupling that pops free under pressure can whip a hose across the work area, spray a jet of oil hot enough to burn, or launch the coupling itself. Oil injection injuries — a pinhole jet of hydraulic fluid puncturing skin — are a known and permanently damaging hazard in this exact situation.

The Three Accident Patterns

Pattern	What happens	Typical result
Hose whip	A coupling releases under residual pressure; the hose end whips with the stored energy	Bruising, cuts, head strikes
Hot-oil spray	Trapped oil at system temperature vents suddenly when the coupling separates	Burns; slip hazards on the floor
Injection / puncture	A pinhole leak or a released poppet sprays a fine jet at close range	Oil injection injury — permanent tissue damage, urgent medical treatment

All three are preventable with the same two habits: bleed the circuit before coupling, and use the relief tool when the coupling design requires it.

Pressure-Relief Tools Explained

Relief tools are the standard answer for couplings that are designed to be disconnected under a small residual pressure — specifically flat-face (ISO 16028) couplings, which have a relief port on the male half. They come in two common forms:

Tool type	What it does	When it’s used
Screw-on relief tool (e.g. the Parker FD89-1001-08-08 style)	Threads onto the male half’s relief port; a needle opens the poppet and vents the trapped volume to atmosphere	Disconnecting flat-face couplings with residual pressure
Relief adapter / bleed adapter (e.g. IRB14-type)	Plugs into the female half and opens the valve seat so the cavity bleeds before the full disconnect	Breaking a joint that won’t release because of trapped pressure

The operating principle is the same: open the valve seat before the halves separate, so the energy vents in a controlled direction — down and away from the operator — instead of when the coupling finally pops.

Rule: if a coupling will not release with a firm, even pull on the sleeve, stop. Do not lever, hammer, or pry. Bleed it.

The Safe Connect Sequence

Connecting under pressure is less dramatic than disconnecting — but it is how residual pressure gets trapped in the first place.

1. Bleed the implement side. With the machine off, operate the implement control briefly to dump any pressure in the work line. On loaders and excavators, cycle the attachment function.
2. Check both halves for damage — a scored valve face, a cracked sleeve, or a missing dust cap means the coupling needs attention before service.
3. Clean the tips. Wipe both halves. Dirt on the nipple groove or the flat face is a leak and a contamination source (see the O-ring guide).
4. Align and push straight on. Couplings engage best when the axis is true. Off-axis force scores the seal surfaces.
5. Listen for the click. A fully engaged coupling seats the sleeve home. If it won’t click, don’t force it — check for trapped pressure or a wrong series pair (see the stuck-coupling guide).
6. Only then pressurize the circuit.

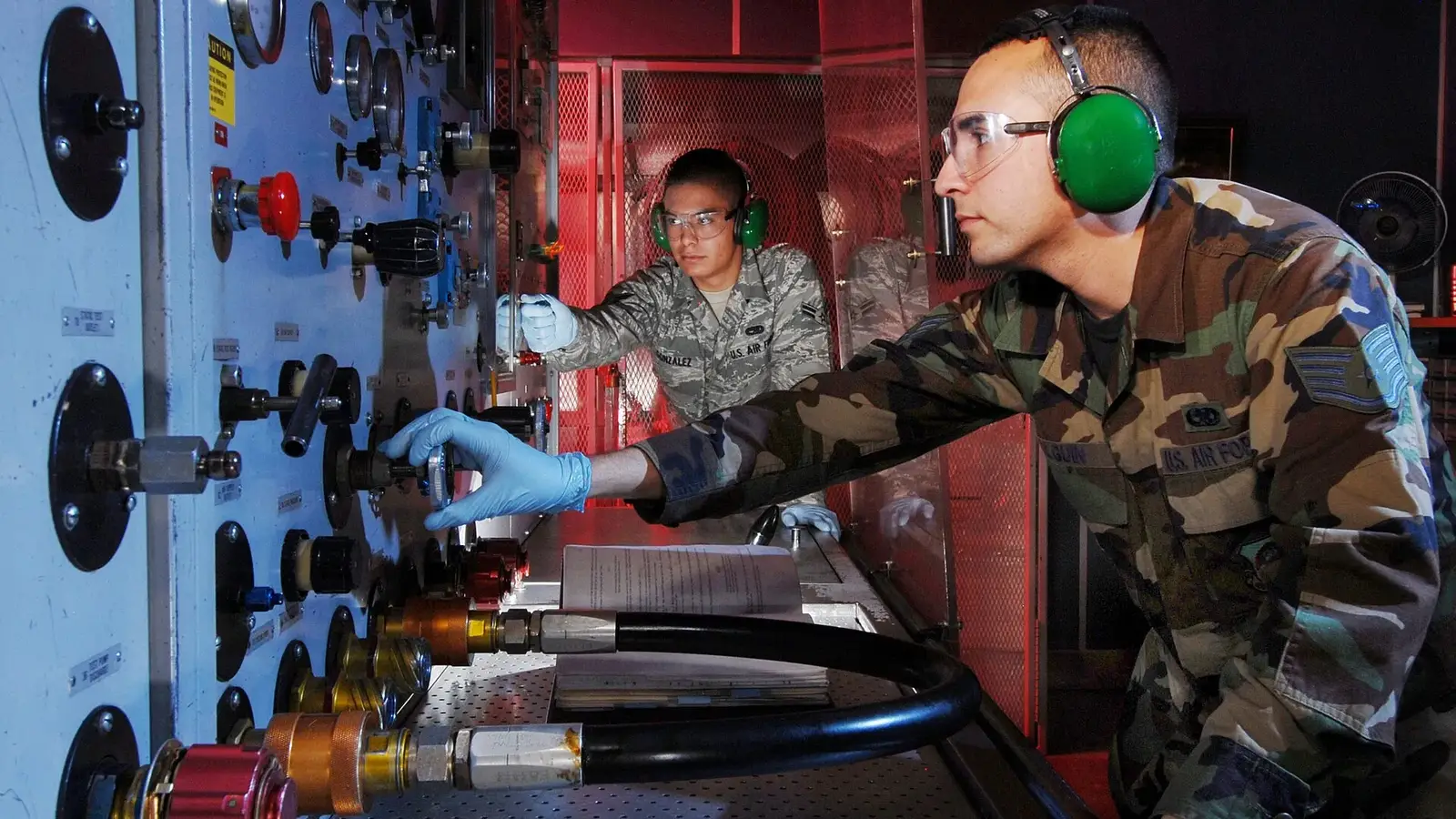

The Safe Disconnect Sequence

1. Depressurize the circuit first. Shut the machine off and operate the implement control to dump line pressure. On machines with accumulators, wait the specified time or open the accumulator drain.
2. Wait a moment — pressure can bleed slowly past poppets; give it five seconds.
3. On flat-face couplings, use the relief tool. Thread it on, vent the cavity, then disconnect normally.
4. Pull the sleeve with even hand pressure — never a lever, never a hammer.
5. Stand clear of the jet path while breaking the joint. Point the connection down and away.
6. Fit dust caps on both halves immediately. Caps protect the seals and keep contamination out — see the O-ring guide for why that matters.

Machines That Need Extra Care

Machine	Why it’s risky	Extra step
Loaders / skid steers	Implements hold residual pressure; coupler banks are in tight quarters	Cycle the attachment before coupling; use a guard plate
Excavators	Long hose runs store energy; quick-coupler circuits see high pressure	Bleed at the attachment, not just at the machine
Machines with accumulators	Stored energy persists after shutdown	Follow the manufacturer’s accumulator bleed procedure; never assume zero pressure
Towable equipment with hydraulic brakes	Brake circuits stay pressurized by design	Use the machine’s dedicated brake release valve before disconnecting

FAQ

Q: Can I disconnect a quick coupling while the engine is running? A: No. Shut the machine off and bleed the circuit. Disconnecting live circuits is how hoses whip and couplings launch.

Q: Is it safe to crack the coupling open a little to bleed it? A: That is exactly the maneuver that causes injection injuries and hose whip. Use a relief tool or bleed through the machine’s controls instead. A controlled bleed is safe; a crack-and-hope is not.

Q: Do flat-face couplings really need a relief tool every time? A: They are designed so the residual cavity pressure is low enough to disconnect without a tool in normal conditions — but when a flat-face coupling won’t release, the relief port exists for exactly this situation. The tool is mandatory for breaking a stubborn joint.

Q: What is an oil injection injury? A: A jet of hydraulic fluid under high pressure that penetrates the skin. It looks like a small puncture but carries fluid deep into the tissue and requires immediate surgical treatment. It is one of the most serious injuries in hydraulics precisely because it looks minor.

Q: Where can I find the relief port on my coupling? A: On ISO 16028 flat-face couplings, the male half has a threaded relief port behind the sealing face. The exact thread and tool size are listed in the coupling’s data sheet — the Parker FD89-1001-08-08 style and the IRB14-type adapters cover the common sizes.
