Application guide — for tractor owners, dealers and implement makers. The ag market runs on ISO 5675, and the practical questions are about brands, sizes and retrofits.

What ISO 5675 Is

ISO 5675 is the international standard for hydraulic quick-action couplers used on agricultural tractors and implements — the standard rear couplers on the tractor’s hydraulic outlets that connect to trailed and mounted implements. It’s a ball-lock design, physically similar to ISO 7241 but with its own dimensions, so ag couplers and industrial couplers are not interchangeable.

Key characteristics of the ISO 5675 ag coupler:

• Ball-lock mechanism with sleeve release.
• Sizes centered on 1/2” and 3/4” (the two hydraulic outlet sizes on most tractors), with 1/4” and 1” also available.
• Designed for the tractor’s implement circuits — typically up to ~200 bar working pressure on modern machines, though the standard itself covers the interface dimensions.
• ISO 5675-1 covers the basic coupler interface; ISO 5675-2 the hydraulic connection geometry.

ISO 5675 vs ISO 7241

	ISO 5675 (agricultural)	ISO 7241 (general ball-lock)
Primary market	Tractors, implements	Mobile/industrial hydraulics
Locking design	Ball lock	Ball lock
Interchangeable?	No — separate dimensions	No — separate dimensions
Common sizes	1/2”, 3/4”	1/4”–1”+
Pressure (typical)	~200 bar ag circuits	~250 bar
Connection	Push-on, sleeve release	Push-on, sleeve release

The physical similarity fools people: an ag nipple will sometimes start to enter an industrial coupler, but the groove position and poppet depth differ, so it won’t seal or lock. Always match by standard, never by “it looks about the same.”

Where Ag Couplers Live on a Tractor

A modern tractor has several coupling points:

Location	What it serves	Typical size
Rear outlets (SCV / remotes)	Implements: loaders, mowers, spreaders	1/2” or 3/4”

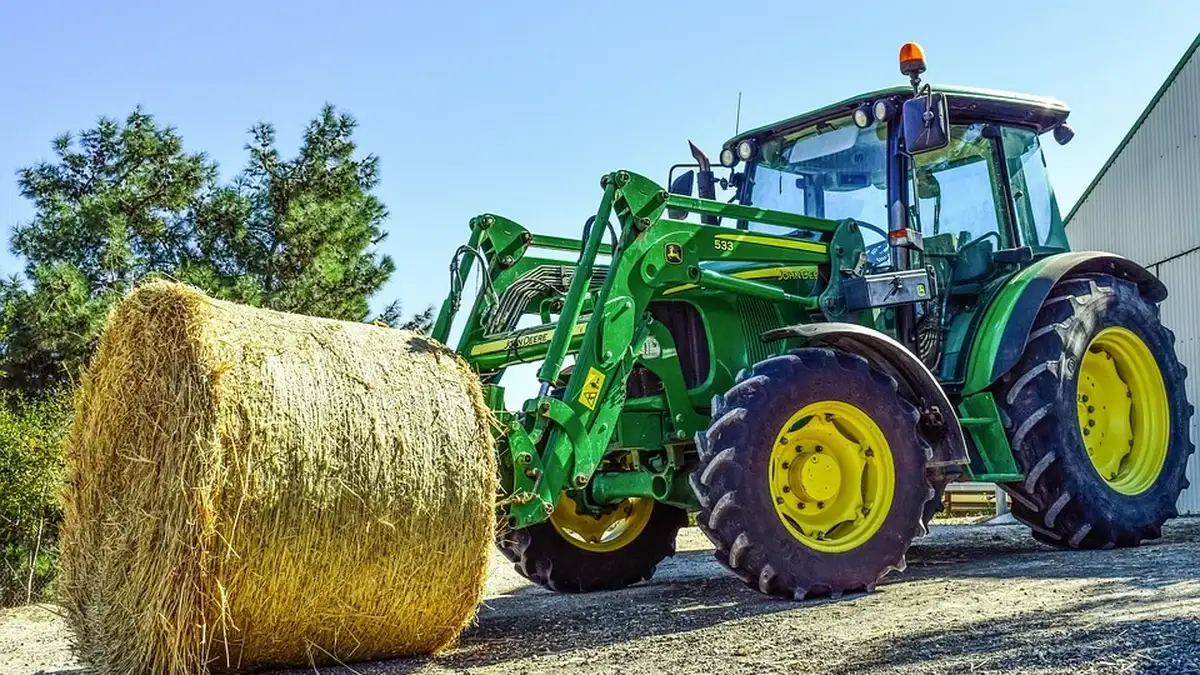

Front loader couplers	Loader functions, quick-attach	1/2”
Mid-mount outlets	Mid-mounted implements	1/2”
PTO-driven implement lines	Towable implements with own hydraulics	3/4”

The rear SCV outlets are where most replacement and retrofit work happens — they take the most abuse, get coupled/uncoupled in the mud, and carry the heaviest flow.

Matching Couplers to Tractor Brands

Ag couplers are standardized at the interface level, but brands configure their outlets differently:

Brand	Typical outlet arrangement
John Deere	Standard ISO 5675 rear outlets; older models use the same interface
Case IH / New Holland	ISO 5675 with brand-specific handle/sleeve feel
Kubota	ISO 5675; some compact models use 1/4” outlets
Massey Ferguson	ISO 5675 with distinctive two-lever rear console

The practical point: the coupler body is interchangeable within ISO 5675 sizes, but the mounting/flange, handle and sleeve feel are brand-specific. On replacement, match the coupler size and standard to the outlet — the exact body style is secondary.

Retrofit and Replacement Checklist

Replacing ag couplers (or adding outlets) — the field checklist:

1. Identify the outlet size — measure the existing nipple or the outlet port: 1/2” vs 3/4” is the first decision.
2. Confirm the standard — ISO 5675 for tractor outlets. If an implement came with non-standard couplers, replace the pair on the implement side to ISO 5675.
3. Check the thread — outlets thread in NPT, BSPP or JIC depending on the tractor’s origin; see the thread standard guide.
4. Match the flow — a 3/4” outlet feeding a heavy implement (large mower, spreader) needs a 3/4” coupler; the sizing guide covers the flow math.
5. Keep dust caps on — ag couplers live in the dirtiest environment in hydraulics; caps are the cheapest insurance (see the O-ring guide).
6. Lubricate the sleeve — a sticky ag coupler is usually a dry, dirty sleeve, not a broken one.

FAQ

Q: Are tractor couplers interchangeable between brands? A: At the ISO 5675 interface level, yes — a standard 1/2” ag nipple fits a standard 1/2” ag coupler from another brand. The mounting and handle hardware differ, but the hydraulic connection is standardized.

Q: Can I use industrial ISO 7241 couplers on my tractor? A: Not mixed with ag implements. Convert the whole line (tractor outlet + implement pair) to one standard. Mixing standards on the same implement circuit is a leak and a stuck-coupling waiting to happen.

Q: Why does my tractor’s coupler leak when the implement is attached? A: Usually a worn poppet O-ring or a scored face — the ag environment (dust, mud, UV) ages seals fast. The reseal sequence is in the O-ring guide.

Q: How much pressure do ag couplers handle? A: Modern tractor implement circuits commonly run up to ~200 bar; the ISO 5675 coupler’s rating varies by size and material. Confirm the rating matches your tractor’s relief setting.

Q: Do I need flat-face couplers on a tractor? A: Some high-end ag equipment is moving to flat-face (ISO 16028) for contamination resistance — see the flat-face guide. For most standard tractor outlets, ISO 5675 remains the practical, interchangeable choice.
